Geothermal Liners.

The JUTA Group is a completely vertically integrated business, beginning with the processing of basic chemicals, polymers and raw materials through the working of these into fibers and woven fabrics to the finished products. This vertical integration combined with our experience, expertise and state-of-the-art technology is the key to their success.

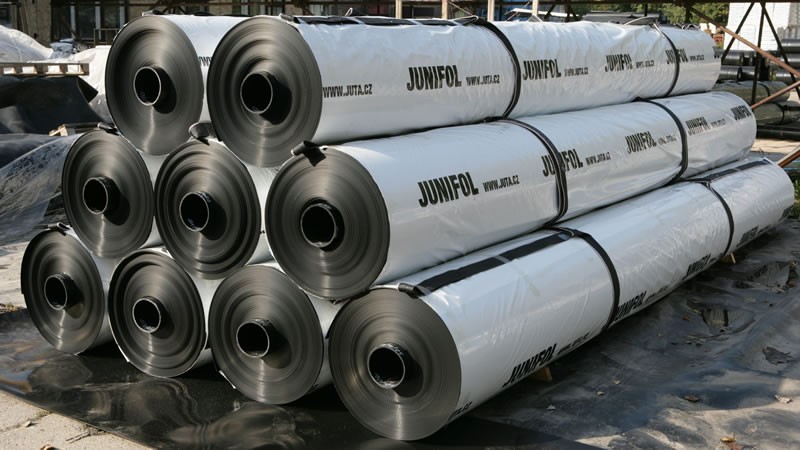

JUTA supplies Hydro-insulation sheet made of high-density polyethylene (HDPE), manufactured in two basic roll widths - 5.1m and 8.0m. JUNIFOL HDPE is available in thicknesses ranging from 0.75mm - 3.0mm. Juta also supplies Hydro-insulation sheet made of linear low density polyethylene (LLDPE), manufactured in two basic roll widths - 5.1m and 8.0m. JUNIFOL LLDPE is available in thicknesses ranging from 0.75mm - 2.0mm.The main purpose of the product is to serve as a barrier protecting various engineering structures against moisture, water, liquids and chemical substances, gases (radon, methane and carbon dioxide).

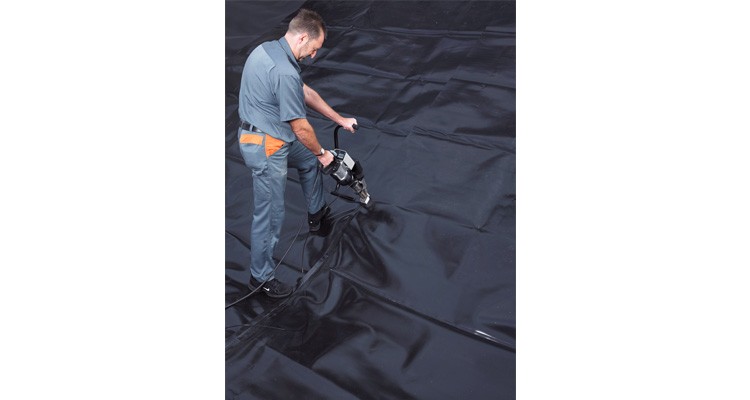

JUNIFOL HDPE & LLDPE can be installed using a variety of seaming technology, which includes an extrusion, hot wedge & hot gas welding process. All formed joints are testable by destructive and non-destructive techniques to ensure that a 100% seal has been achieved.


Junifol HDPE Smooth:
 Right-Click & Save PDF
Junifol HDPE Textured:  Right-Click & Save PDF
